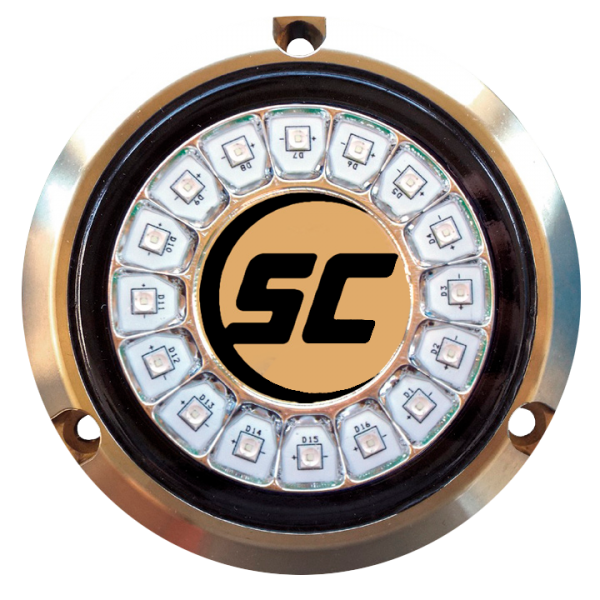

ROUND UNDERWATER LED (SCR-16)

The SCR-16 underwater light provides your vessel 60 watts of intense LED lighting. The SCR-16’s are designed within a compact 4″ diameter bronze housing for under waterline thru-hull mounting. Single or multicolor version available with variable brightness and a wide array of control options.

$640.00

Clear

KEY FEATURES

  • Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with bronze housing – impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection – dramatically prolongs unit life
  • Thermal throttling technology – enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • 2-Year Warranty

COLORS AVAILABLE / PART NUMBER

Blue & White Ultra Blue Bimini Blue
SCR-16-BW-BZ-10 SCR-16-UB-BZ-10 SCR-16-BB-BZ-10
Cool Red Aqua Green Great White
SCR-16-CR-BZ-10 SCR-16-AG-BZ-10 SCR-16-GW-BZ-10

CONTROL OPTIONS

POWER TOGGLE CONTROL PUSH BUTTON CONTROL SHADOW-NET® CONTROL
Quickly toggle power source to advance to next color or brightness level.
Used with a single color lights allows for light on/off, fade in/out and strobe.
Two color lights allows either single color on, fade between colors and strobe current color.
Connect to any push button controller. Ask about Shadow-Caster®’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.
Used with a single color lights allows for light on/off, fade in/out and strobe.
Two color lights allows either single color on, fade between colors and strobe current color.
Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

TECHNICAL INFORMATION

DOWNLOADS

  • Up to 7,000 lumens
  • 120° beam angle
  • 60 watts power draw
  • 5 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 4” (102 mm) OD
  • IP68 fully submerisble waterproof design
SCR-16 Datasheet.pdf
SCR Series Installation Diagram.pdf
SCR Series Installation Instructions.pdf

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
