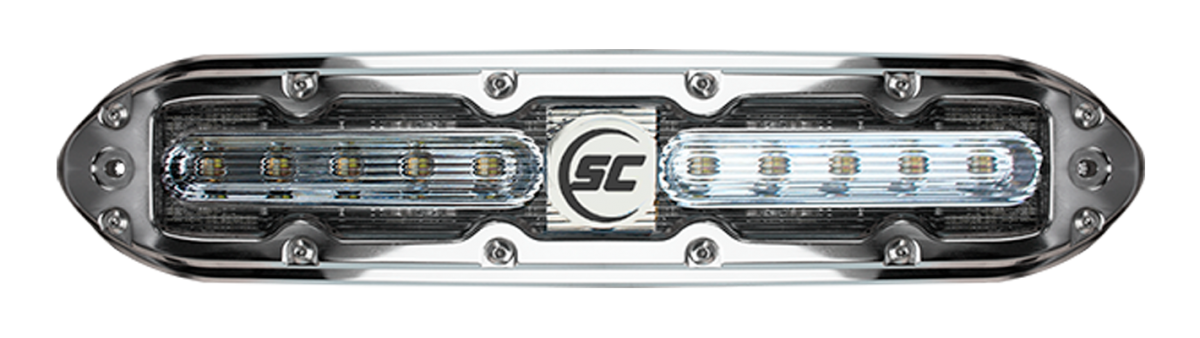

UNDERWATER LED LIGHT (SCM-10)

The SCM-10 underwater light provides your vessel 42 watts of intense LED lighting. The SCM-10’s low profile design allows for many mounting locations. 5 different single color options to choose from. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

$740.00

Clear

KEY FEATURES

  • Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
  • Tough, polycarbonate lens
  • Passivated stainless steel 316 material provides a durable corrosion resistant housing
  • Transient surge and reverse polarity protection – dramatically prolongs unit life
  • Thermal throttling technology – enables safe operation even out of water
  • 2-Year Warranty

COLORS AVAILABLE / PART NUMBER

Ultra Blue Aqua Green Bimini Blue
SCM-10-UB-20 SCR-24-AG-BZ-10 SCR-16-BB-BZ-10
Cool Red Great White
SCM-10-CR-20 SCM-10-GW-20

TECHNICAL INFORMATION

DOWNLOADS

  • Up to 4,000 lumens
  • 120° beam angle
  • 10 single color LEDs
  • 42 watts power draw
  • 3.5 Amps operating current draw @ 12 volts
  • 10-30 volts input
  • 10” (254 mm) x 2.4” (61mm) x  0.5” (13mm)
  • IP68 fully submersible waterproof design
SCM-10 Datasheet.pdf
SCM Series Installation Diagram.pdf

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
