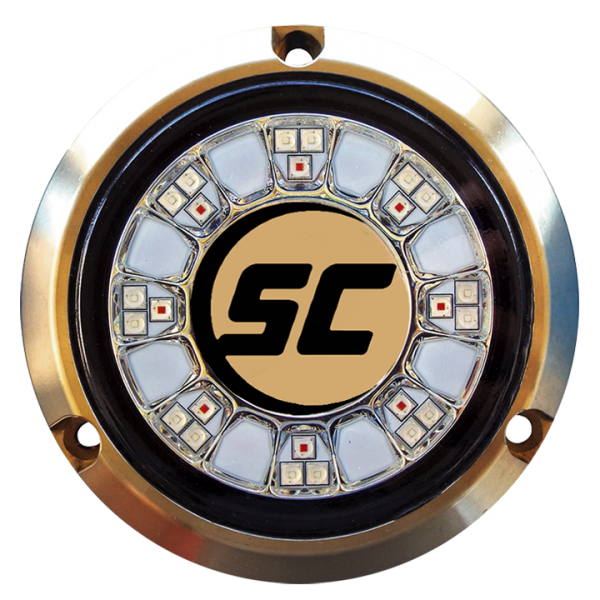

ROUND UNDERWATER LED LIGHT (SCR-24)

The SCR-24 underwater light provides your vessel 90 watts of intense LED lighting. The SCR-24’s are designed within a compact 4″ diameter bronze housing for under waterline thru-hull mounting. Single or multicolor version available with variable brightness and a wide array of control options.

$820.00$850.00

Clear

KEY FEATURES

  • Proprietary clear-gel-filled design, injected through entire unit — eliminates condensation and/or water intrusion under stress
  • Tough, scratch resistant, tempered glass lens with bronze housing — impervious to acetone, solvents and demanding marine environments
  • Transient surge and reverse polarity protection — dramatically prolongs unit life
  • Thermal throttling technology — enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • Full color light “CC’ has 12 built-in colors, and can be enabled with unlimited colors and many other advanced features using Shadow-NET®
  • 2-Year Warranty

COLORS AVAILABLE / PART NUMBER

Blue & White Aqua Green Bimini Blue
SCR-24-BW-BZ-10 SCR-24-AG-BZ-10 SCR-16-BB-BZ-10
Great White Full Color – 12-color standard,
or unlimited colors with Shadow-Net®
SCR-16-GW-BZ-10 SCR-24-CC-BZ-10

CONTROL OPTIONS

POWER TOGGLE CONTROL PUSH BUTTON CONTROL SHADOW-NET® CONTROL
Quickly toggle power source to advance to next color or brightness level.

Used with a single color lights allows for light on/off, fade in/out and strobe.

Two color lights allows either single color on, fade between colors and strobe current color.

Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.

Connect to any push button controller. Ask about Shadow-Caster®’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.

Used with a single color lights allows for light on/off, fade in/out and strobe.

Two color lights allows either single color on, fade between colors and strobe current color.

Full color lights allow for any single color on, fade blue to white, fade through all 12 colors and strobe current color.

Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

TECHNICAL INFORMATION

DOWNLOADS

  • Up to 10,000 lumens
  • 120° beam angle
  • 90 watts power draw
  • 7.8 amps operating current draw @ 12 volts
  • 10-40 volts input
  • 4″ (102 mm) OD
  • IP68 fully submersible waterproof design
SCR-24 Datasheet.pdf
SCR-24 on a Toggle Switch Wiring Diagram.pdf
SCR-24 on a Toggle Switch with Push Button Wiring Diagram.pdf
Four SCR-24s on a PD-RELAY-4 Wiring Diagram.pdf
SCR Series Installation Diagram.pdf
SCR Series Installation Instructions.pdf

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
