LED OVERHEAD DOWN LIGHT (SCM-DLX)

The Shadow-Caster® Large Down Light SCM-DLX is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3” overall diameter, its wide angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 color (white, blue and red) as well as a full color version. Choose from three beautiful color finishes – white, black and polished chrome. Easily control the brightness and color from a standard switch.

KEY FEATURES

  • Soft start technology ramps the brightness up gently over 2 seconds.
  • Power toggle feature to set brightness and change color
  • True white LED for best color performance
  • 120 degree viewing angle
  • High efficiency switch mode power supply
  • Waterproof low-profile aluminum housing
  • All-Glass reveal provides a modern look

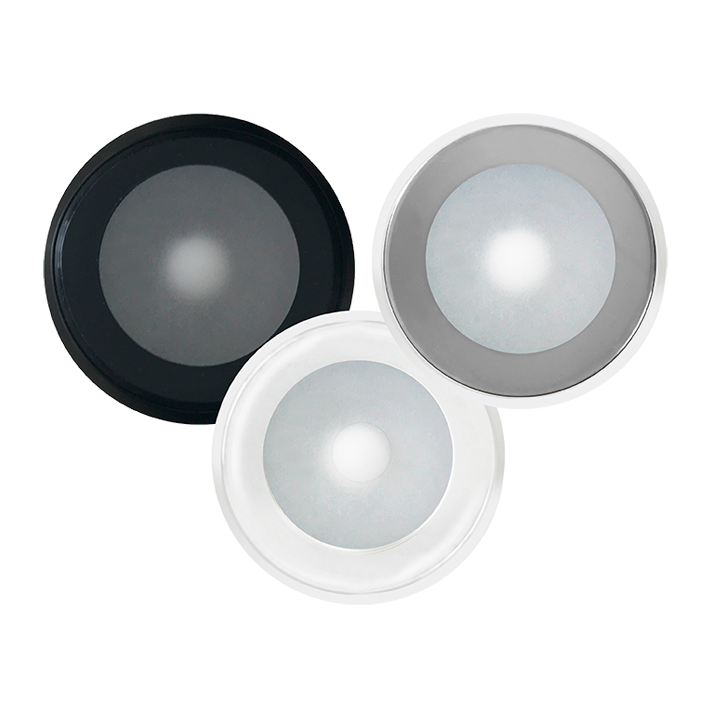

  • White, black or polished chrome finish
  • 2-Year Warranty

COLORS AVAILABLE / PART NUMBER

Great White White, Blue & Red Bimini Blue

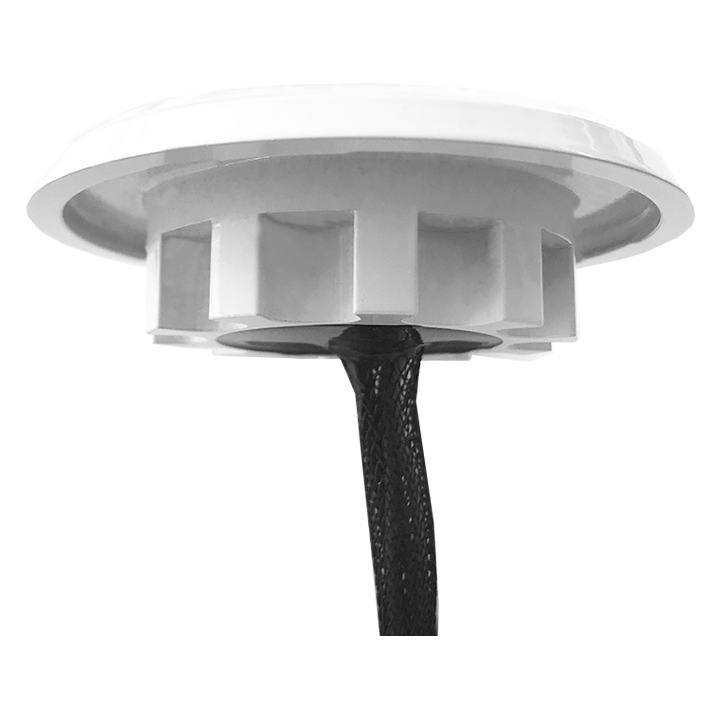

SCM-DLX-GW-WH SCM-DLX-WBR-WH SCM-DLX-CC-WH (white housing, white window)

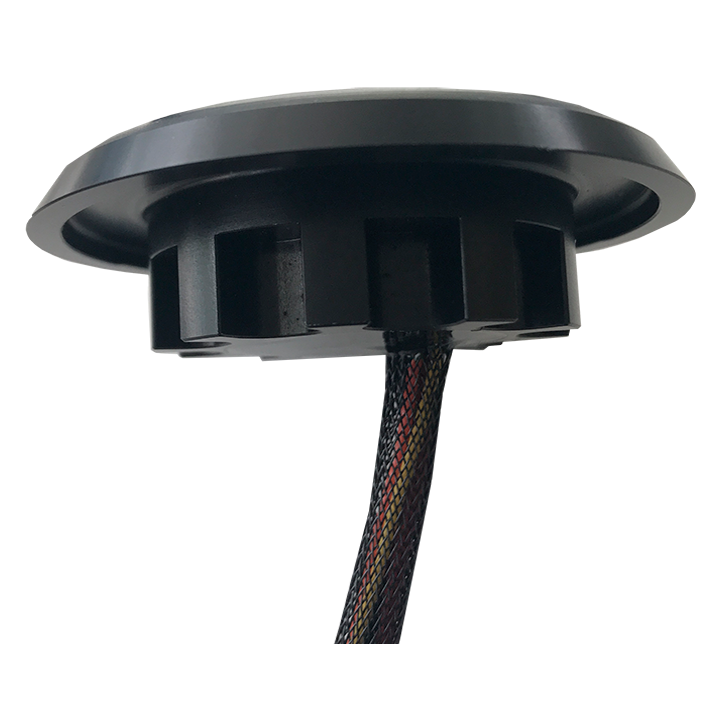

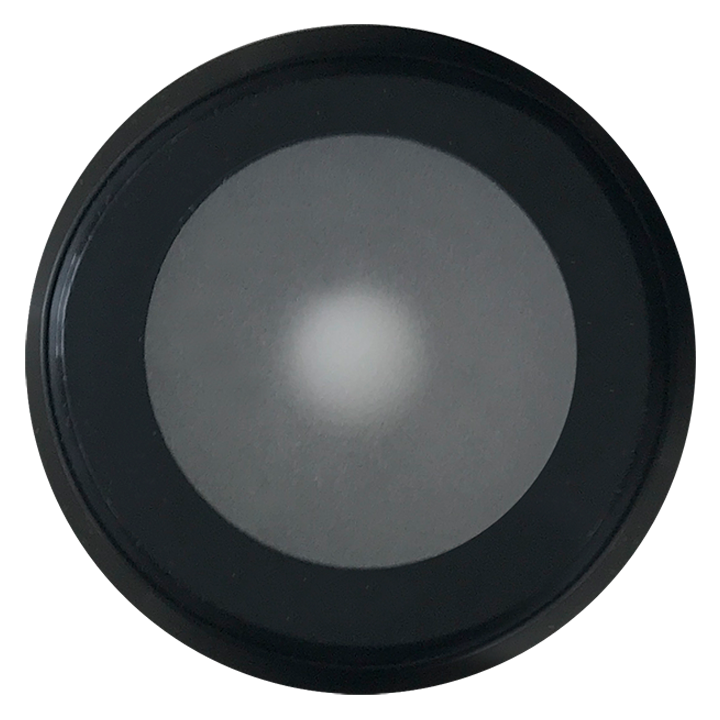

SCM-DLX-CC-BK (black housing, black window)

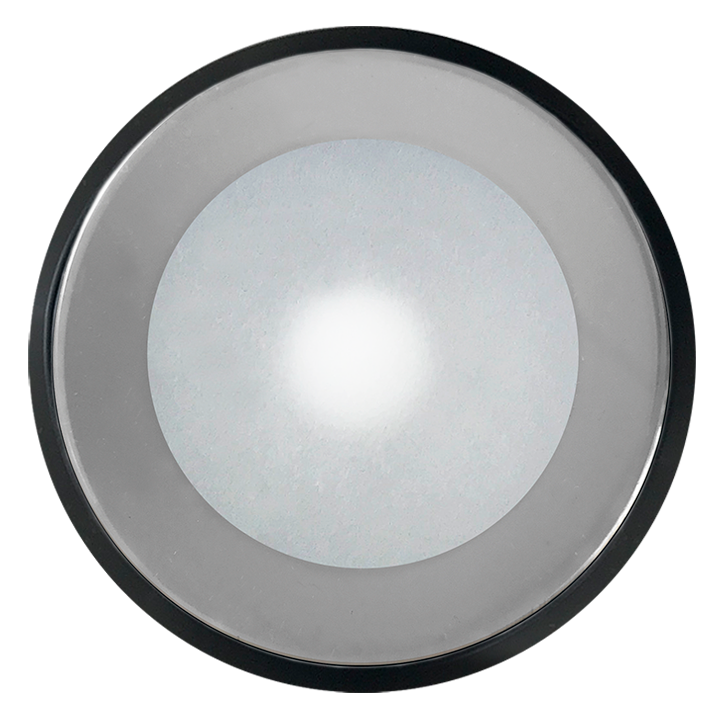

SCM-DLX-CC-CHR (black housing, chrome window)

TECHNICAL INFORMATION

DOWNLOADS

  • 300 lumen output
  • 120° beam angle
  • 3 watt power draw
  • 10-30 volts input
  • 250mA at 12 volts, 125mA at 24 volts
  • 6200 Kelvin cool white color temperature
  • 3” (76mm) OD, 0.175” (4mm) mounting height
  • 2″ mounting hole
  • Durable glass lens
  • IP67 waterproof design
  • Color change version includes Shadow-NET® interface for control
SCM-DLX Datasheet.pdf

CONTROL OPTIONS

POWER TOGGLE CONTROL SHADOW-NET CONTROL
Quickly toggle power source to advance to next color or brightness level. Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC-KIT) & app.

Dramatically enhanced lighting capabilities through your existing MFD allows for unlimited shades of color and fading, dimming, strobe rate, music sync, multiple zones and much more.

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
