MARINE SMALL ROUND ACCENT LIGHTS (SCM-RAL SERIES)
SHADOW-CASTER® Small Round LED Accent Lights “RAL” products are designed for lighting small areas around your vessel. Choose the correct product based on your mounting location and application.

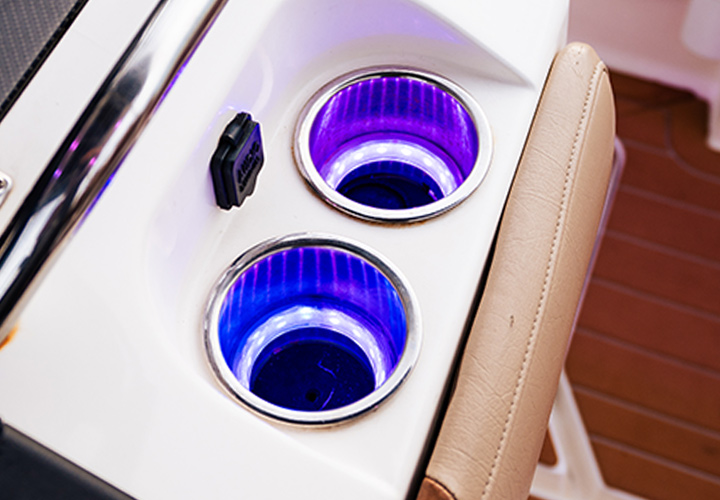

SHADOW-CASTER® Round Accent Lights support a variety of mounting configurations for anything from small hatches, cup holders, toe kick areas, walk way illumination, map lighting, baitwells and cooler areas.
All of SHADOW-CASTER® RGB Accent Lights are designed to work with Shadow-Caster’s innovative line up of lighting controllers.
Price range: $32.00 through $39.00
 |
Small RGB Accent Light (black anodised aluminium housing) SCM-RAL-RGB-0.4-AB |
|
Small RGB Accent Light (white polymer housing) SCM-RAL-RGB-0.4-PW |
|
Large RGB Accent Light (polycarbonate housing) SCM-RAL-RGB-0.5 |

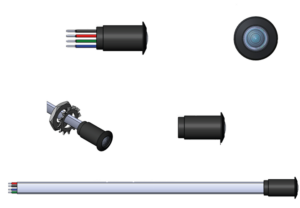

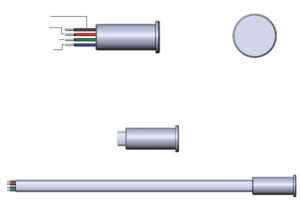

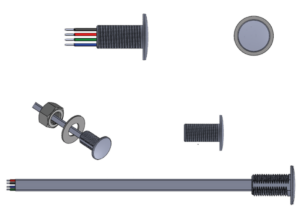

DIMENSIONS
| SCM-RAL-RGB-0.4-AB | SCM-RAL-RGB-0.4-PW | SCM-RAL-RGB-0.5 |
 |
 |
 |
TECHNICAL INFORMATION
| SCM-RAL-RGB-0.4-AB | SCM-RAL-RGB-0.4-PW | SCM-RAL-RGB-0.5 | |
| Recommended Applications | Cup holders & other panel mount applications | Cup holders, hatches, and toe kick area lighting | Large hatches, baitwells, coolers and other accent areas |
| IP Rating | IP65 | IP67 | IP68 |
| Materials | Aluminium black anodized housing and polycarbonate window | Diffused polymer white housing | Polycarbonate |
| Thread | 3/8-32 | none | 1/2-20 |
| Recommended Hole Diameter | 0.41″ | 0.375″ | 0.53″ |
| Current Channel | 20mA, 60mA total | 20mA, 60mA total | 30mA, 90mA total |
| Voltage | 12V only | 12V only | 12V only |
| Lead Wire Length | 18″ /0.5m | 18″ /0.5m | 18″ /0.5m |
| Hardware Included | Panel nut and star washer | none | Nylon nut and rubber washer |
