Shadow-Caster® LED Lighting offers a variety of color changing LED accent lighting strips to illuminate your boat or outdoor lighting project. Choosing which type is dependent on how and where the lights will be mounted.
Shadow Caster® SCM-AL-LED strip is best when mounted out of direct view.
Shadow-Caster® LED Accent Lighting comes in either 8 or 16 ft lengths and can be cut down in the increments specified below to fit into a particular application. As there is no integrated control electronics, the strip can either be hardwired to be a certain color, or try a Shadow-Caster® controller to fully control color and brightness.
$220.00 – $285.00
LENGTHS AVAILABLE / PART NO.
COLOURS
8′ (2.5m) Length 8 Clips & 1 End Cap
SCM-AL-LED-08
16′ (5m) Length
16 Clips & 2 End Caps
SCM-AL-LED-16
Red
Yellow
Green
Magenta
Blue
Cyan
TECHNICAL INFORMATION
DOWNLOADS
RGB color
120° beam angle
60 LEDs per meter
50mm cut segments
15W per meter
1.2A per meter
12V only

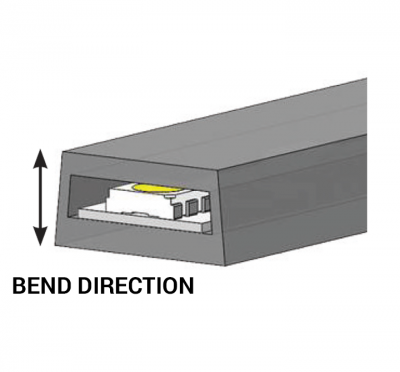

0.5″ (13mm) bend radius
0.2″ x 0.5″ (5mm x 12mm)
20′ (6m) lead wire
IP67 waterproof design
Silicone jacket material
-30 – 60°C operating temperature
Compatible with SCM-AL-TRACK
SCM ACCENT LED STRIPS Datasheet.pdf SCM-AL Installation Instructions.pdf
Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
