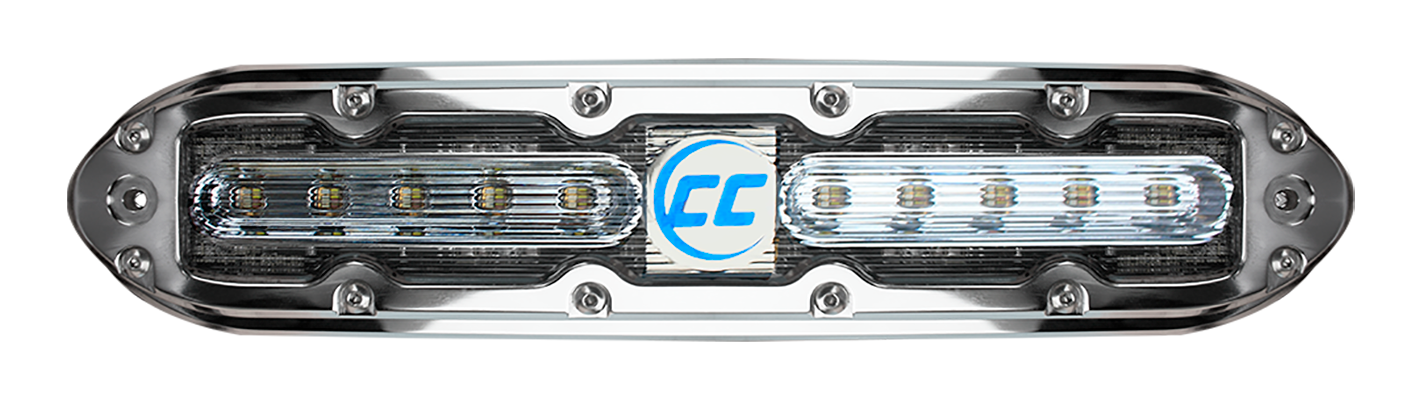

UNDERWATER LED LIGHT (SCM-10-EXT-CC)

The SCM-10-EXT-CC extended colour underwater light provides your vessel with 42 watts of intense LED lighting. Easily switch between 12 standard colours or use an or use a Shadow-NET® enabled product to enjoy unlimited colours. The SCM-10-EXT-CC’s low profile design allows for many mounting locations. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

KEY FEATURES:

  • Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
  • Tough, Polycarbonate lens
  • Passivated Stainless Steel 316 material provides a durable corrosion resistant housing
  • Transient surge and reverse polarity protection – dramatically prolongs unit life
  • Thermal throttling technology – enables safe operation even out of water
  • From simple on-off to full-feature lighting effects, unit is enabled for a host of control interfaces
  • Select between 12 colors when using a switch or unlimited colors when using Shadow-NET® enabled products
  • 2-Year Warranty

CONTROL OPTIONS

POWER TOGGLE CONTROL PUSH BUTTON CONTROL SHADOW-NET® CONTROL
Quickly toggle power source to advance to next color or brightness level.



Connect to any push button controller. Ask about Shadow-Caster®’s highest quality, marine-grade push button controllers, optimized to work seamlessly with your lighting requirements.

Used with a single color lights allows for light on/off, fade in/out and strobe.

Full-feature control through your Multifunction Display (MFD) by adding the Shadow-NET® control module (SCM-MFD-LC) & app.

TECHNICAL INFORMATION

DOWNLOADS

  • Up to 3,750 lumens
  • 120° beam angle
  • 10 RGBW LEDs
  • 42 watts power draw
  • 3.5 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 10″ (254 mm) x 2.4″ (61mm) x 0.5″ (13mm)
  • IP68 fully submersible waterproof design
SCM-10-EXT-CC Datasheet.pdf
SCM Series Installation Diagram.pdf

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
