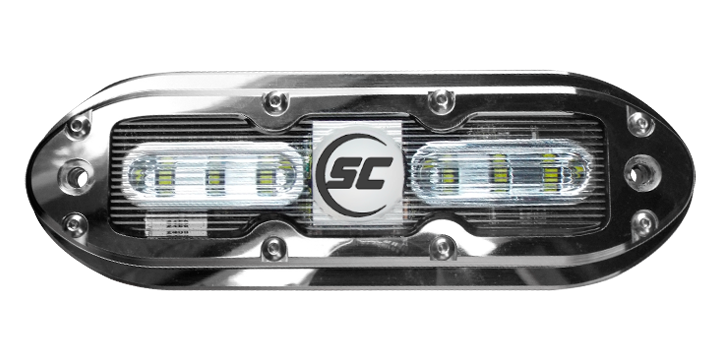

UNDERWATER LED LIGHT (SCM-6)

The SCM-6 underwater light provides your vessel 24 watts of intense LED lighting. The SCM-6’s low profile design allows for many mounting locations. 5 different single color options to chose from. The unique stainless steel housing compliments the look of any trailer or lift kept boat.

$570.00

Clear

KEY FEATURES

  • Proprietary clear-gel-filled design, injected through entire unit – eliminates condensation and/or water intrusion under stress
  • Tough, polycarbonate lens
  • Passivated stainless steel 316 material provides a durable corrosion resistant housing
  • Transient surge and reverse polarity protection – dramatically prolongs unit life
  • Thermal throttling technology – enables safe operation even out of water
  • 2-Year Warranty

COLORS AVAILABLE / PART NUMBER

Great White Ultra Blue Bimini Blue
SCM-6-GW-20 SCM-6-UB-10 SCM-6-BB-20
Cool Red Aqua Green
SCM-6-CR-20 SCM-6-AG-20

TECHNICAL INFORMATION

DOWNLOADS

  • Up to 2,400 lumens
  • 120° beam angle
  • 6 single color LEDs
  • 24 watts power draw
  • 2.0 amps operating current draw @ 12 volts
  • 10-30 volts input
  • 7.2” (183 mm) x 2.4” (61mm) x 0.5” (13mm)
  • IP68 fully submersible waterproof design
SCM-6 Datasheet.pdf
SCM-6 Installation Diagram.pdf
