NMEA2000 MULTI-ZONE LIGHT CONTROLLER

Discover the SHADOW-CASTER® Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set and store a variety of lighting scenes – from color change, fade, rotation and strobe, through to music sync effects, offering versatility and customization to illuminate your boat like never before.

Encased in a durable IP67 housing with Deutsch style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for.

Elevate your marine lighting experience with the Light Commander NMEA 2000 – where technology meets functionality and style.

$859.00$1,399.00

The Shadow-Caster® Light Commander SCM-LC is an NMEA2000 lighting control based on the newly published NMEA2000 lighting control standards. Utilization of NMEA2000 lighting standards enable “next level” implementation of lighting control and marine system integration and system interoperability.

The expandable SC-LC multi-zone lighting controller supports up to 6 zones of lighting per module with native support for 4 zones of RGB or RGBW lights. The lighting controller supports programs including multiple colour fade, music sync and colour rotation. The Light Commander comes in a fully sealed IP67 housing, with backlit logo design.

Key Features

  • NMEA2000 Backbone or MFD Network Port Connectivity
  • Global control for all lighting
  • Up to 6 separate zones of lighting control – expandable to 18 zones by connecting multiple units

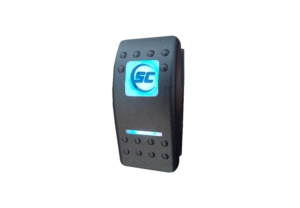

  • 6 “Instant ON” switch inputs for enabling lights without MFD control
  • Support for RGB and RGBW lighting
  • Optional wireless connectivity for control from a mobile device

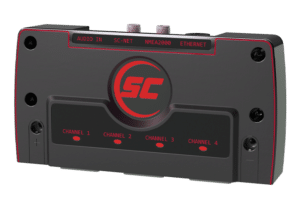

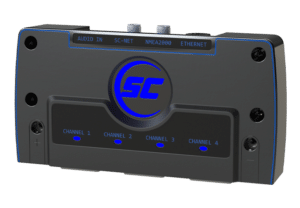

SCM-LC-N2K SCM-LC-PLUS SCM-LC-SCNET
NMEA2000 Connection NMEA2000 Connectivity
SC-NET Network Interface
Wi-Fi/Bluetooth connectivity to support Shadow-Caster Mobile app
Expansion Module for 12 or 18 Zones
Pair with ZC Remote

Additional Features:

  • IP67 Water resistant rated housing with waterproof connections
  • Deutsch style IP67 rated connections, for clean OEM installations
  • All in one design, no need for a separate MFD communication bridge

INTERFACING TO THE LIGHT COMMANDER

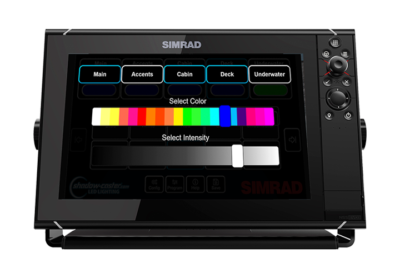

Network Interface

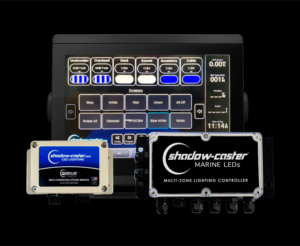

To connect to your compatible MFD and utilize Shadow-Caster’s custom lighting interface to create lighting scenes, customize and name zones and assign devices to zones, use the SCM-LC-PLUS. Compatible with Garmin, Simrad, Lowrance, B&G, Raymarine, and Furuno.
NMEA2000 Connectivity
With the release of industry standardized NMEA2000 lighting control protocols, plug and play lighting controller compatibility is here. Simply connect to the NMEA2000 backbone with either the SCM-LC-N2K or SCM-LC-PLUS.

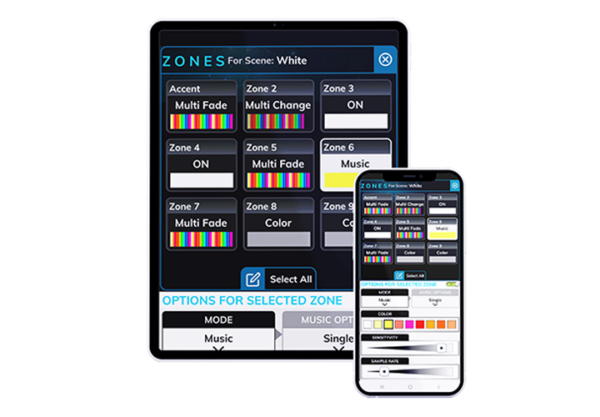

Mobile App Compatible
Use the SCM-LC-PLUS to utilize the Shadow-Caster® custom Android app to seamlessly switch control from your Network MFD, NMEA200 interface to your mobile device, create and manage your library of lighting scenes and lights.

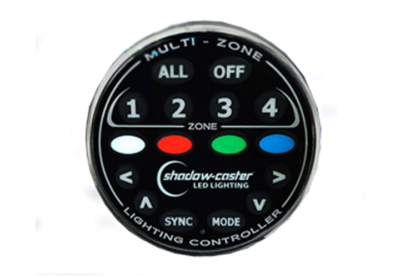

SCM-ZC-REMOTE
Use Shadow-Caster®’s backlit Zone Controller keypad (SCM-ZC-REMOTE) with the SCM-LC-SCNET to instantly control 4 zones of lighting through a backlit keypad.

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
