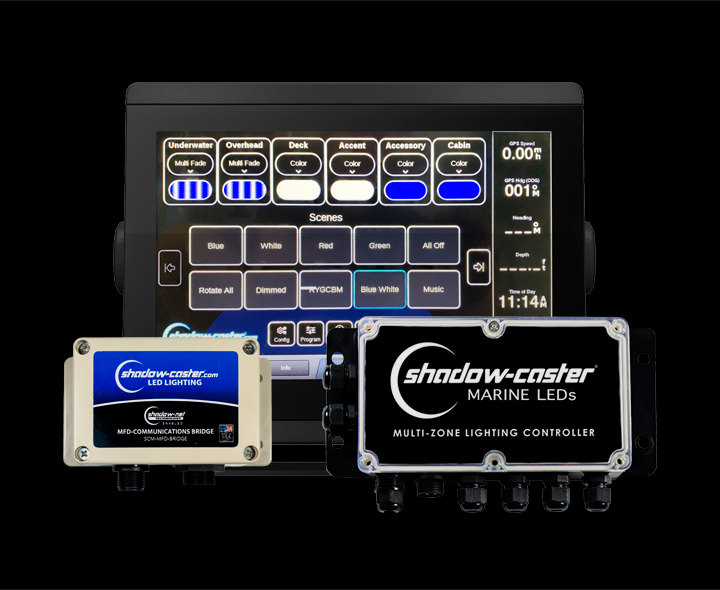

MFD CONTROL KIT (SCM-MFD-LC-KIT)

$910.00

Control all of your marine lighting through your vessel’s touch screen interface and the Shadow-Caster® easy to use Multi-Function Display Lighting Controller SCM-MFD-LC-KIT. Our unique system provides color, brightness, and multiple fade, strobe and music sync modes for up to 6 zones.

Simply plug into your system’s network interface and step through the on-screen setup. There is no additional software to install or complex configuration.

The Shadow-Caster® Lighting Controller is compatible with most major MFD manufacturers including Garmin™, Simrad, Lowrance®, B&G, Raymarine® and Furuno. Our SCM-MFD-LC-KIT is also compatible with all standard RGB and RGBW lighting.

KEY FEATURES
  • No software to download, simply plug into your display’s network to access the system
  • No extra power switches required. Our system will control all on/off power requirements for the lighting including optional Shadow-NET® lights
  • Easy to use graphic interface
  • Simply connect Shadow-NET® devices including Shadow-Caster® underwater lights or downlights and assign them to a zone
  • Compatible with all standard RGB and RGBW lighting
  • On screen setup allows you to configure and name up to 6 separate lighting zones, including, underwater lights, accent lights, and speaker lights
  • Control color and brightness for each zone
  • Control speed and color sequence for fade and strobe
  • 4 different music sync modes
  • Endless lighting “scenes” can be configured and easily recalled
  • 2-Year Warranty
SHADOW-NET® TECHNOLOGY
Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
INCLUDES
  • Multi-Zone Lighting Controller (SCM-MZ-LC)
  • MFD Communications Bridge (SCM-MFD-BRIDGE-STANDARD)
  • Standard ethernet cable which provides compatibility with most systems (Manufacturer adapter may be required – see chart)
  • Mounting hardware
  • 1 meter Shadow-NET® communication cable (SCM-SCNET-01)
  • Quick start guide
OPTIONAL SHADOW-NET® CABLES

2 metre cable
SCM-SCNET-02

4 metre cable
SCM-SCNET-04

Y Cable for Adding SCNET Control Devices
SCM-SCNET-Y

TECHNICAL INFORMATION
  • 4 individually fused 15 amp RGBW lighting connections
  • Compatible with 12/24 volts systems
  • 3.5 mm female audio connection input for music sync
  • IP65 washdown rated enclosures
  • Color coded connections make for easy installation
  • On-board indicator lights for system diagnostic
  • Up to 6 zones of control
  • Custom configurations available for boat builder applications Contact Shadow-Caster® support for more details
  • IP protocol for standard network interfaces as well all other applications

Shadow-Net® is a multi-channel communications platform created by Shadow-Caster® to allow seamless integration and control of all of your boat’s lighting.
