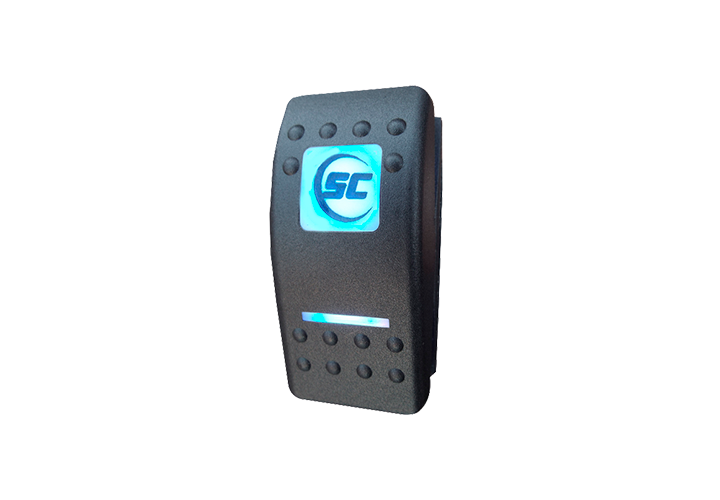

THREE POSITION SWITCH (SCM-SWITCH-O/O/MOMENTARY)

Off/On/Momentary Switch for Shadow-Caster® lighting products.

TECHNICAL INFORMATION
  • Off/On/Momentary
  • LED Voltage Rating: 12V (Add 600 ohm resistor between pin 7 and ground for 24V operation)
  • LED Color: Blue x 2
  • Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
  • Sealing IP66/68, for above-panel components of actual switch only
  • Operating Temp. -40°C to +85°C
  • Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
  • Switch and actuator color: Black
